Introducing

AURA’s innovative LumiShield™ technology is an extremely flexible, corrosion resistant, chemically inert, and wear resistant material engineered to maximize component longevity, system efficiency, and lower long term system costs in harsh environments.

The superior material choice for corrosive environments and sensitive processes found in the refinery, energy, chemical processing, biopharm, research, and offshore industries.

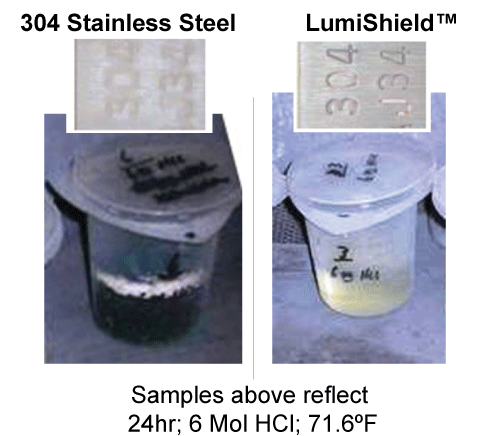

Samples above reflect
24hr; 6 Mol HCl; 71.6ºF
(Click to enlarge)

The LumiShield™ Advantage:

• Increased corrosion resistance to 316LSS or exotic metals
• Increases component longevity
• Reduces product contamination
• Lowers system cost

• Chemically Inert
• Eliminates absorption of corrosive compounds and moisture
• NOx, SO2, HCl, NH3, and Mercury
• Improves low ppm sampling accuracy
• Shortens cycle times

Produced through CVD application of a proprietary blend of carbon and silicon, LumiShield™ bonds in depth with the crystal structure of 316L SS making it part of the base metal.

Functional Specifications:

• Corrosive resistance vs. stainless steel
• 200x
• Corrosion resistance vs. Hastelloy
  • 20x
• Moisture resistance vs. stainless steel
• 2x
• Wear resistance vs. stainless steel
• 2x
• pH range stability
• 0-14
• Working pressure
• 0-5500 PSI
• Temperature range
• -40-450 degrees F
